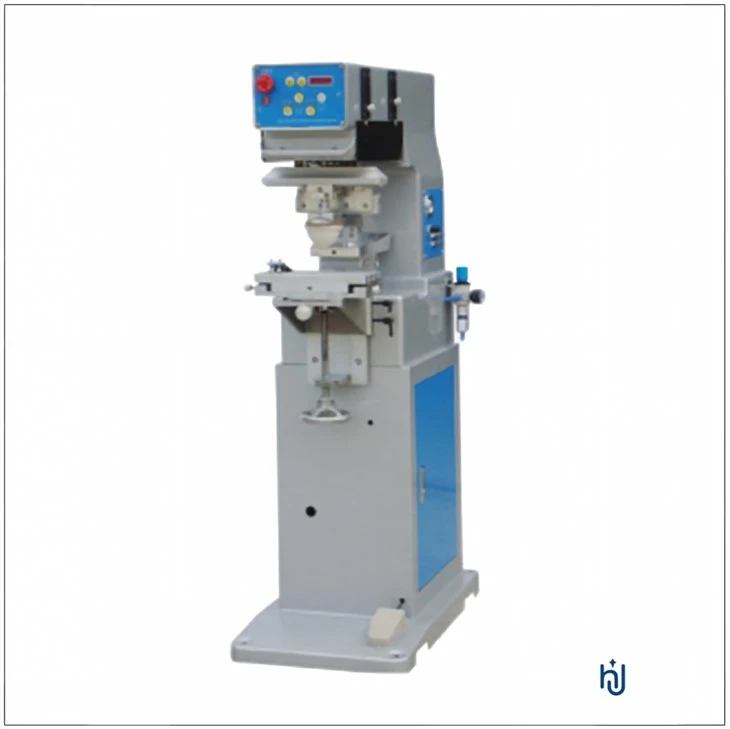

Pad Printing Machine
HJMED model: JVP1-SA
Printing efficiency: Up to 1600 times per hour
Cliché size (LW): 620/125 mm
Ink-cup diameter size: 90 mm
Power supply: 110~220V/1Ph/50Hz
Power input: 50 w
>> MAIN FEATURES:
1) Suitable for various catheters in PVC, latex or PVC.
2) Spares such as ink, thinner, ink cup, cliché plate etc are available.
3) To ensure of 100% technical transfer, it is strongly suggested that physical samples and 3D drawings are shared with HJMED's technical team before finalizing the design of the printer.
Send Inquiry
Product Introduction
Guangdong Huaju Medical Technology Co., Ltd. is one of the leading manufacturers and suppliers of pad printing machine in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy top-quality pad printing machine made in China here from our factory.

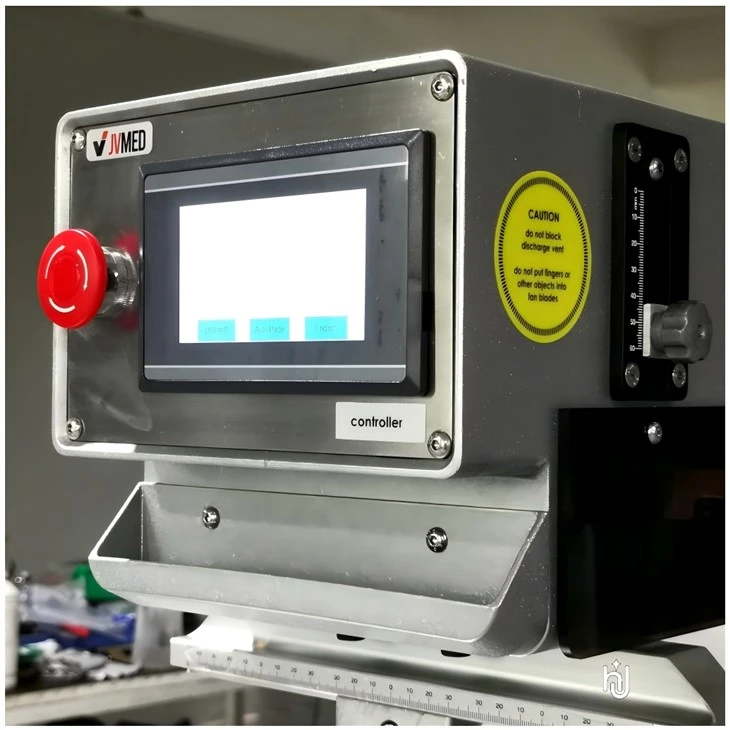

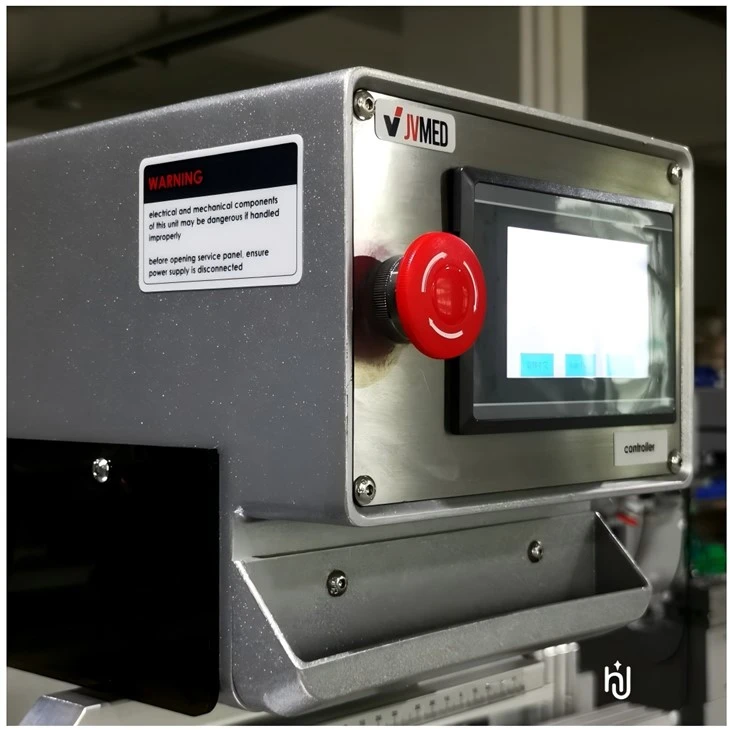

Designed for the label/mark printing upon pvc catheters or parts in an efficient and reliable pad printing solution, the latest generation of HJMED Pad Printer #JVP1-SA features very less noise from 35% heavier machine net; easier interface accessibility from finger touch controller; and simpler operation from the optimized mechanical design and fittings.
>> SPECIFICATIONS:
|
HJMED model |
JVP1-SA |
|
Printing efficiency |
Up to 1600 times per hour |
|
Cliché size (LW) |
620/125 mm |
|
Ink-cup diameter size |
90 mm |
|
Power supply |
110~220V/1Ph/50Hz |
|
Power input |
50 w |
|
Air source |
External air system |
|
Air source connector |
8 mm |
|
Air pressure |
5~7 bars |
|
Servo |
Japan Mitsubishi |
|
PLC operation |
Touch control LCD interface |
|
Dimension (LWH) |
780/800/1380 mm |
>> SPARES OPTIONAL:
|
NO. |
ITEM / INCI NAME |
SIZE |
|
1 |
Cliché plate |
650/125 MM |
|
2 |
Cliché plate |
550/125 MM |
|
3 |
Cliché plate |
400/125 MM |
|
4 |
Printing ink (Marabu Germany) |
PER KG |
|
5 |
Printing ink (Visprox Italy) |
PER KG |
|
6 |
Ink thinner |
PER KG |
|
7 |
Ink cleaner |
PER KG |
|
8 |
Ink cup |
90 MM DIA. |
|
9 |
Printer head #963 |
350/30 MM |
|
10 |
Printer head #C029 |
360/30 MM |
|
11 |
Printer head #195 |
290/20 MM |
|
12 |
Printer head #193 |
290/18 MM |
Final values should be confirmed for the version equipped with the circumferential printing fixture.
>> OEM/ODM PRODUCTION:
Offers OEM/ODM services for medical catheters and components, backed by expertise in technical design, tooling, and polymer processing. An NDA must be signed by both parties before exchanging proprietary technical details.
>> RELEVANT PRODUCTS:

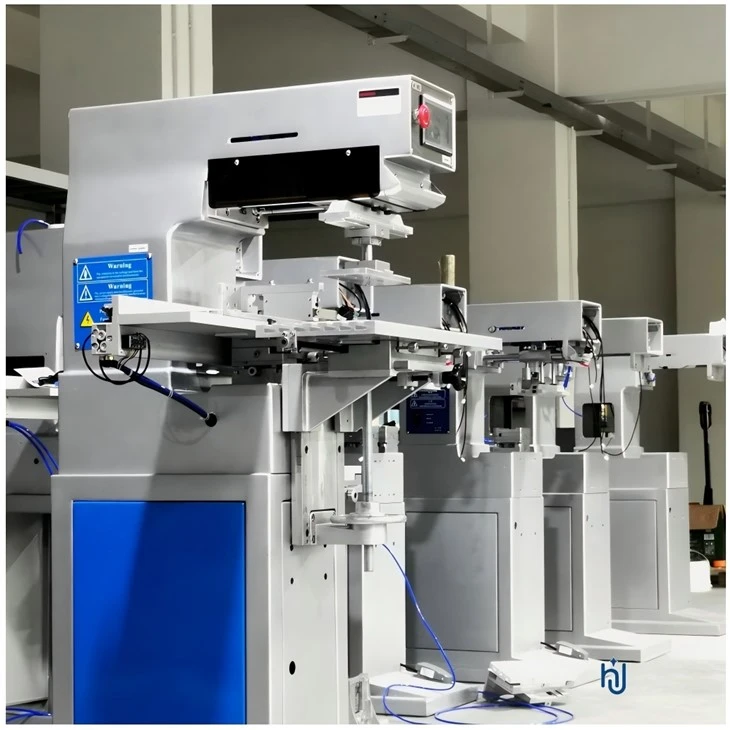

The horizontal ink-cup pad printing machine supports both Flat printing and Circumferential(Round) printing. With the circumferential printing fixture installed, cylindrical medical tubes or components can rotate during printing for continuous marking around the product surface. Fixtures can be customized for different product dimensions.
Application:
Endotracheal Tubes (ETT)
Feeding Tube
Nelaton catheter
Suction Catheter
Foley Catheter
CVC catheter
PVC/TPU medical tube
Double-J stent
And other cylindrical or flat medical components.

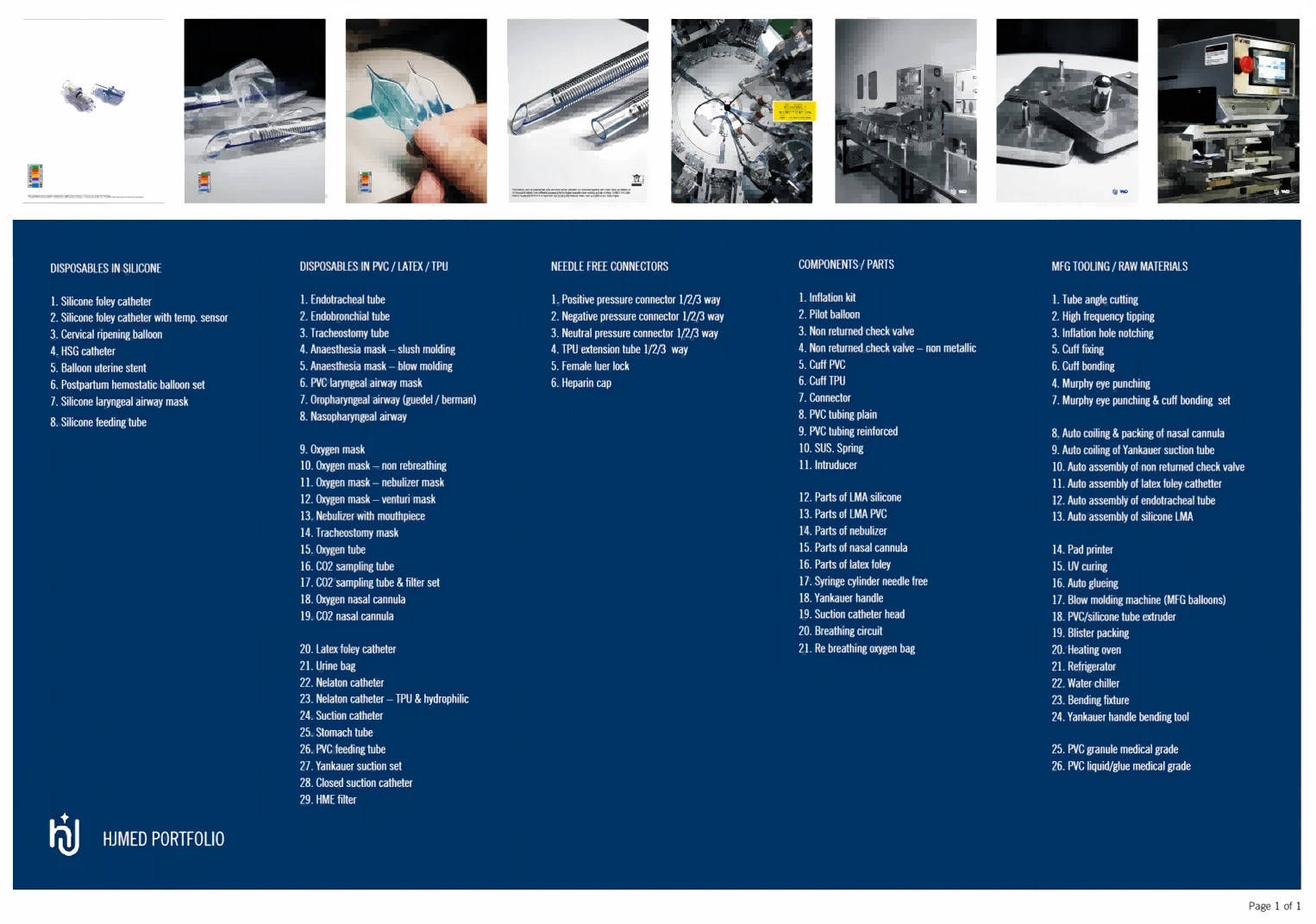

>> HJMED PORTFOLIO:
