Tube Angle Cutting Machine

Guangdong Huaju Medical Technology Co., Ltd. is one of the leading manufacturers and suppliers of tube angle cutting machine in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy top-quality tube angle cutting machine made in China here from our factory.

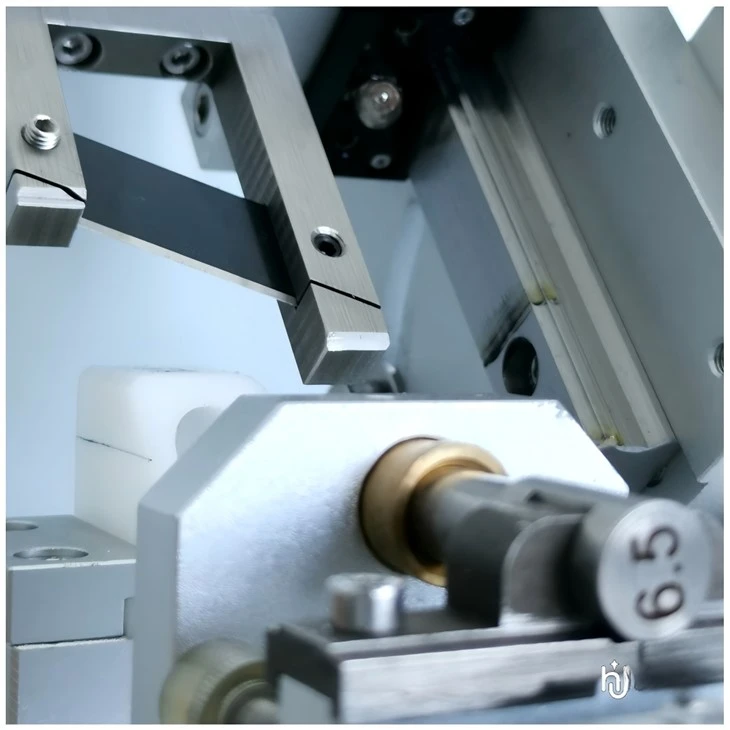

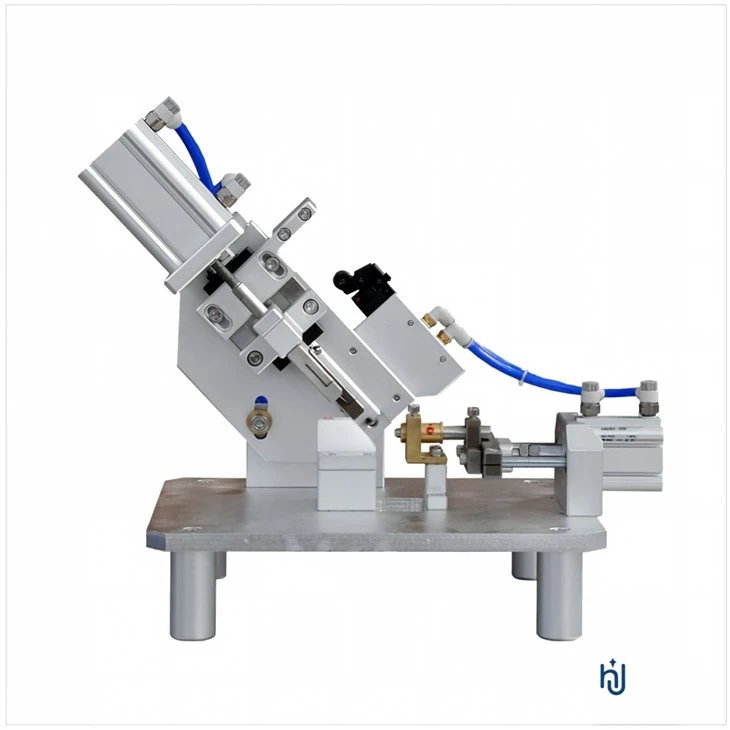

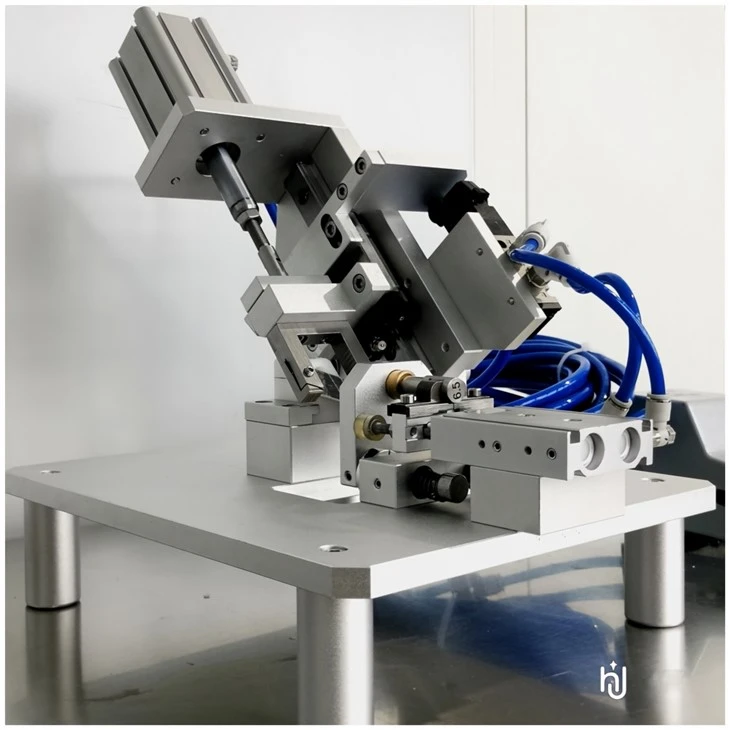

Rapid and precise bevel cutting of PVC tubing is enabled by the HJMED/JVMED tube angle cutting machine (Model #JVAC23) prior to downstream catheter manufacturing stages, such as tipping, printing, and cuff assembly. Clean, burr-free cuts are produced across adjustable cutting angles. Dedicated cutting blades and holding fixtures accommodating sizes from Fr 2.0 to Fr 10.0 are supplied alongside the unit.

>> MAIN FEATURES:

1). Production capacity: 800-1000 pcs per hour.

2). Power supply: 220-240V, 1.5KW, 6m2 Copper core.

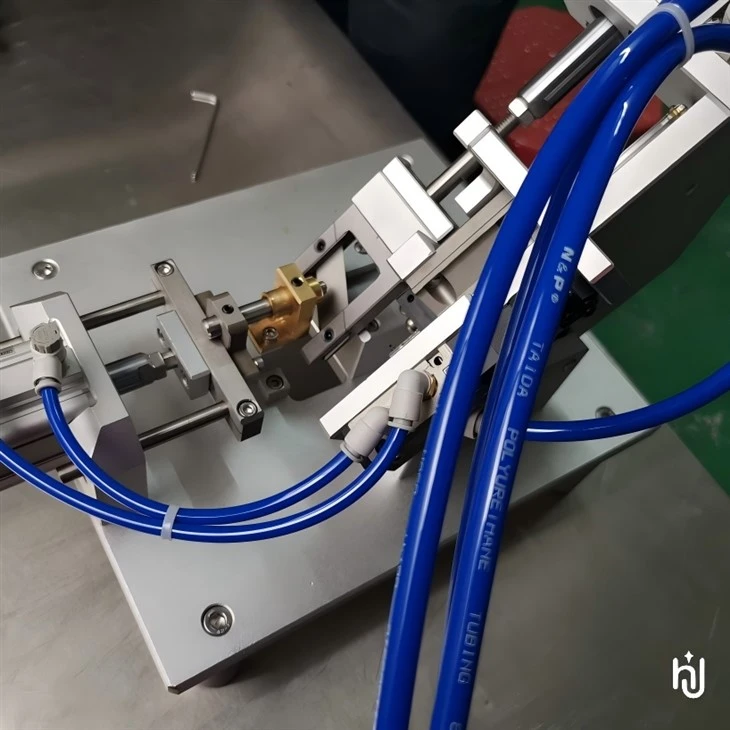

3). SMC air pumping fittings of Japanese technique.

4). THK mechanics module; can be operated easily.

5). Adjustable cutting angle.

6). Used to cut the angles of various tubes such as suction tube, endotracheal tube, feeding tube, foley catheter etc.

7). Dimension (L/W/H): 415/250/335 mm.

NOTES:

Included Tooling: Dedicated bonding and holding fixtures across standard tubing dimensions are bundled with the equipment.

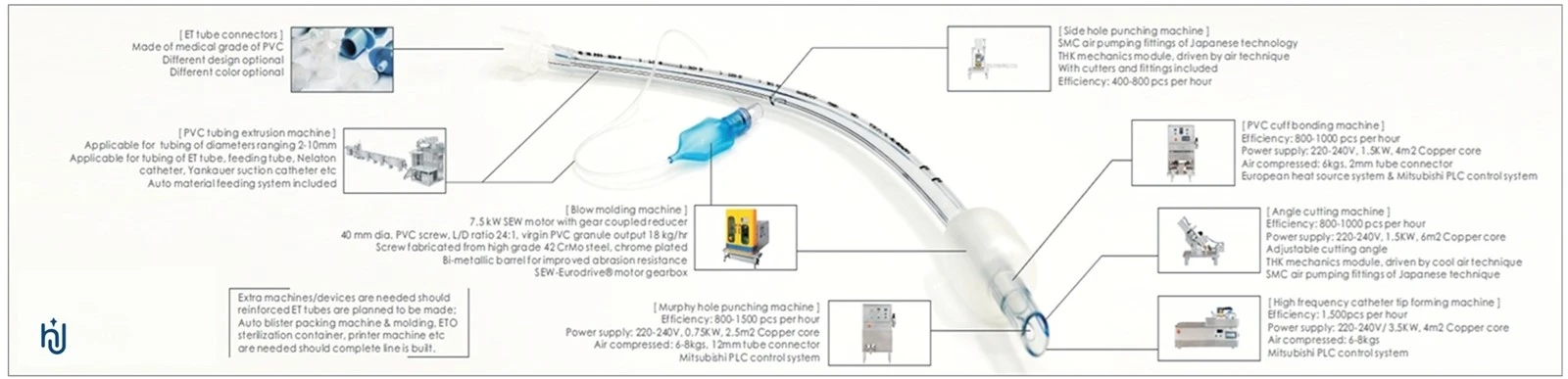

Optional Modules: Complementary machinery and specialized tooling for catheter tube cutting, side-hole punching, printing, and tipping are available as optional configurations.

Optimization & Commissioning: To ensure optimal efficiency and bond strength for proprietary endotracheal tube (ETT) designs, physical samples and 3D CAD files should be submitted to the technical team. Bonding fitting configurations and operational parameters are finalized following thorough commissioning and trial production runs.
