Cuff Loading Machine

Guangdong Huaju Medical Technology Co., Ltd. is one of the leading manufacturers and suppliers of cuff loading machine in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy top-quality cuff loading machine made in China here from our factory.

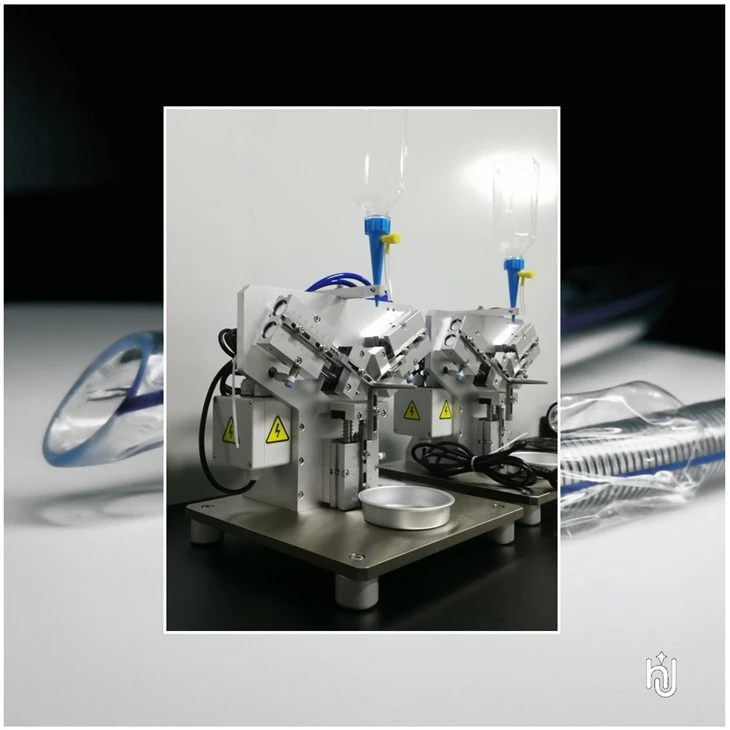

Rapid placement and precise positioning of cuffs are enabled through the application of a small drop of ethanol as a lubricant, preventing material damage during assembly. Both PVC and Polyurethane (PU) cuffs are accommodated by the HJMED cuff/balloon loading machine.

>> MAIN FEATURES:

Streamlined Operation: Simple handling is paired with a reliable mechanical system.

Simplified Mounting: Quick attachment of balloons onto endotracheal tubing is facilitated.

High Efficiency: Increased productivity and reduced failure rates are achieved, allowing labor costs to be minimized.

Specialized Tooling: Auxiliary fixtures are included to support smaller PVC and TPU balloon dimensions.

>> SPECIFICATIONS & NOTES:

Lubrication: Ethyl alcohol may be applied during tube-to-cuff insertion to serve as a temporary lubricant and speed up production.

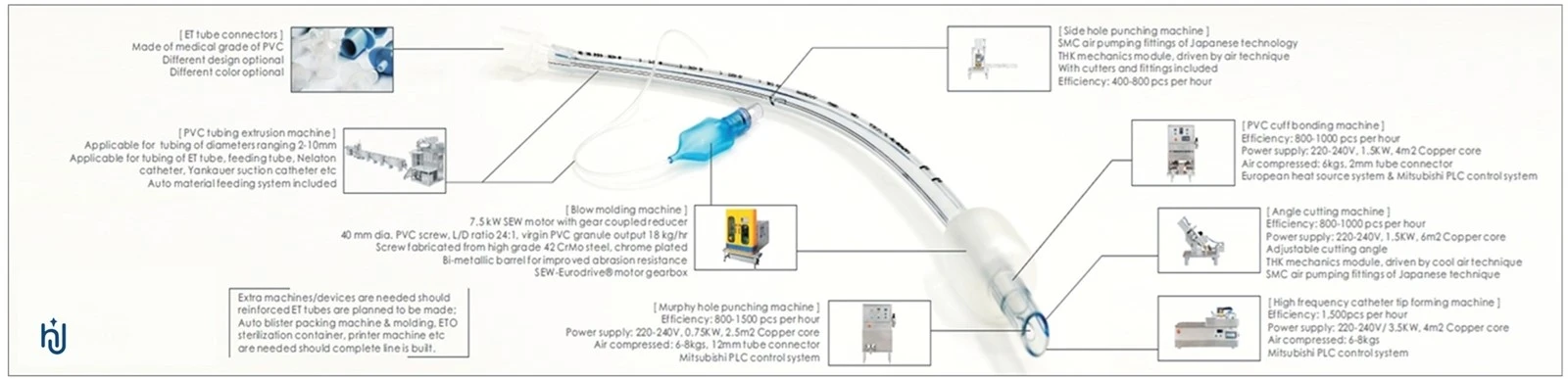

Optional Machinery: Auxiliary equipment for catheter cutting, notch punching, surface printing, and tip forming can be integrated upon request.

Custom Assembly Setup: Optimal cuff bonding quality for proprietary ETT designs is ensured when physical samples and 3D models are submitted to the technical team.

>> ASSEMBLY PROCEDURE:

The work surface is sanitized using an approved disinfectant.

Base endotracheal tubes and corresponding cuffs are prepared for assembly.

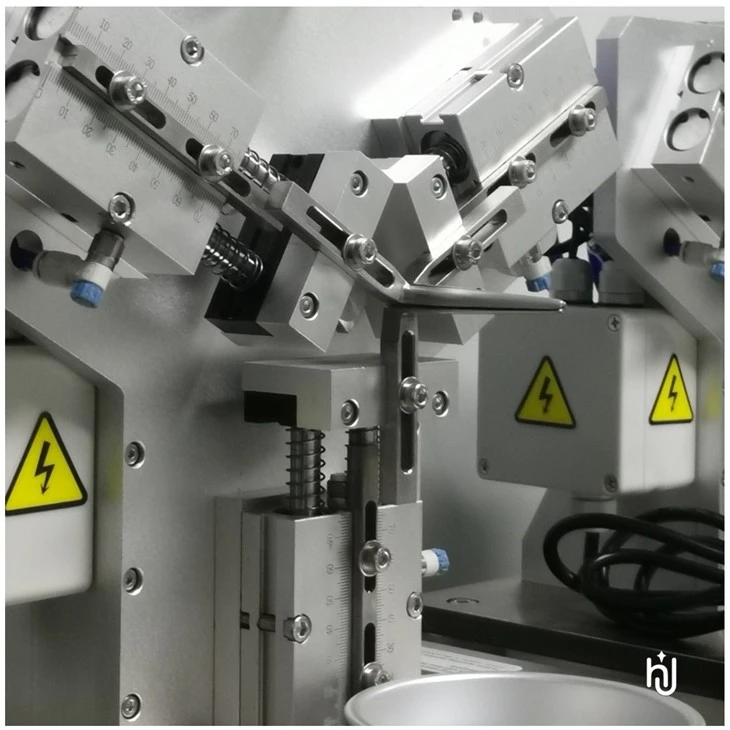

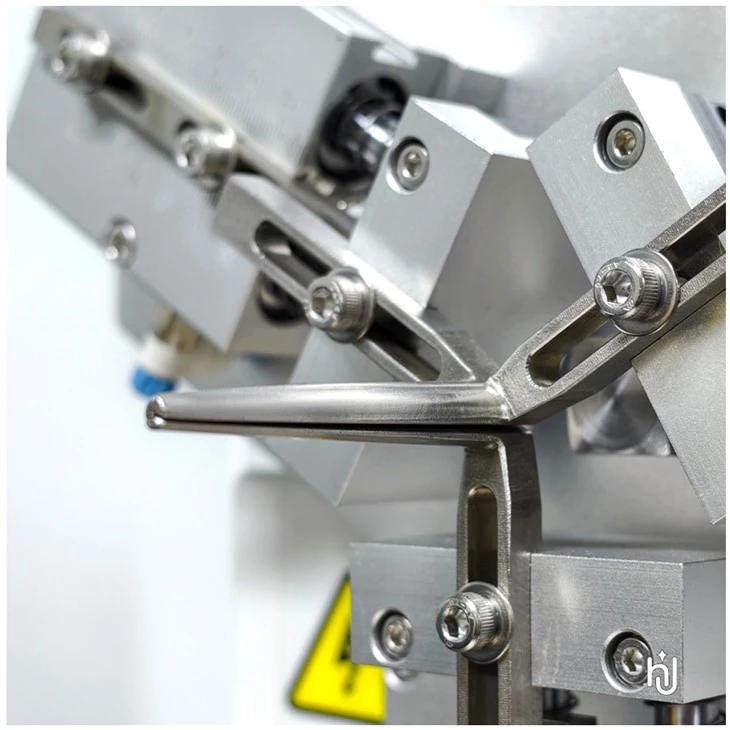

A single cuff is loaded onto the three-jaw mechanical expander.

Pneumatic expansion of the cuff is initiated, and the base tube is inserted through the expanded sleeve.

>> RELEVANT PRODUCTS:(Click for more details)

HJMED Cuff bonding machine utilizes advanced thermoplastic heating technology to ensure uniform, high-precision bonding between PVC/TPU cuffs and main endotracheal tubings. Controlled via an intuitive Mitsubishi PLC touchscreen interface, the unit guarantees reliable processing for endotracheal tubes (ETT) ranging from ID 2.0 mm to 10.0 mm. Built with a durable SUS 304-2B stainless steel and aluminum alloy casing, it includes quick-connect pneumatic fittings for streamlined operational setup.

Because incoming tubings and cuffs must comply with international medical standards, clients are requested to submit sizing charts or technical drawings to HJMED's technical team prior to ordering to verify compatibility or arrange custom tooling. Every machine includes standard bonding fittings for ETT sizes #5.0 through #10.0 in 0.5 mm increments.

>> SPECIFICATIONS:

Capacity: 800-1000 pcs / hour.

Power supply: 220-240V, 1.5KW, 4m2 Copper core.

Air compressed: 6kgs, 2mm tube connector.

Equipped by European heat source system.

Dimension (L/W/H): 480/500/885 mm.

Mitsubishi PLC control system for efficient performance.

Easy to melt cuff and tube into one piece without using any glue.

Efficient work, less failure rate and save much labor cost.

Smooth & even joint between cuff and tube.

Note: sizes of bonding fittings nr. 5.0-10.0 included.
