High Frequency Catheter Tipping Machine

Guangdong Huaju Medical Technology Co., Ltd. is one of the leading manufacturers and suppliers of high frequency catheter tipping machine in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy top-quality high frequency catheter tipping machine made in China here from our factory.

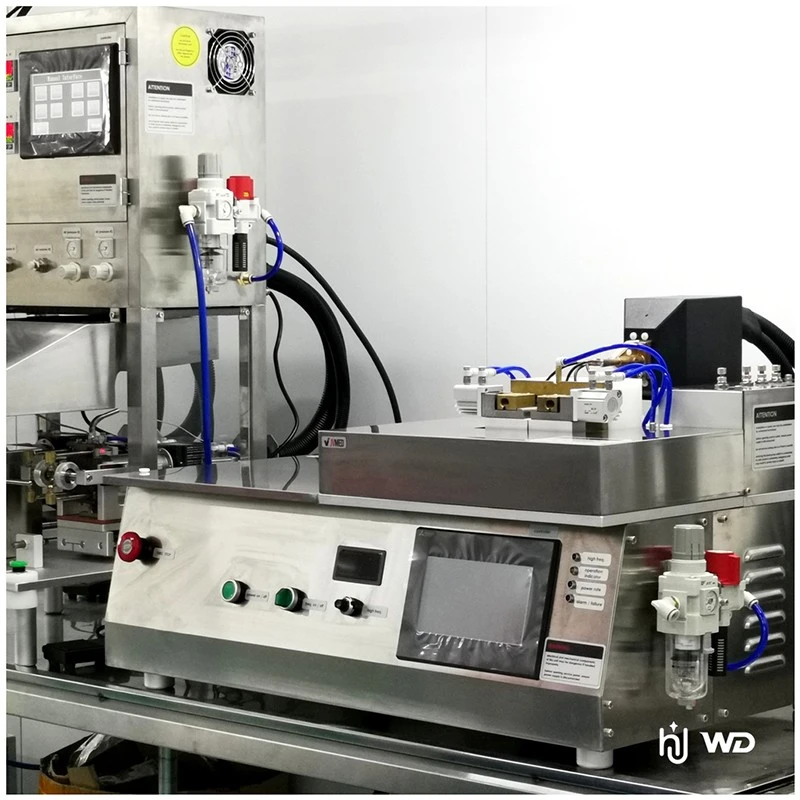

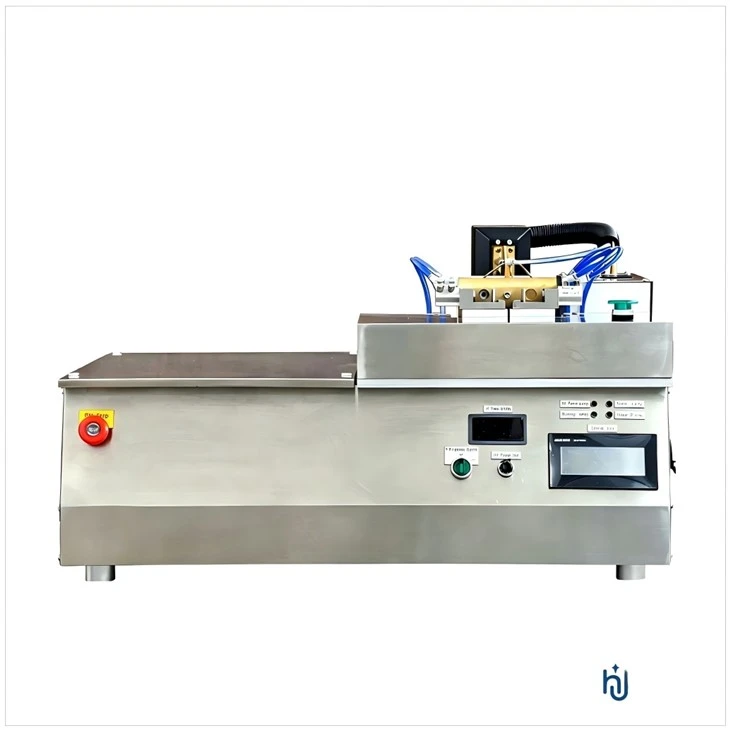

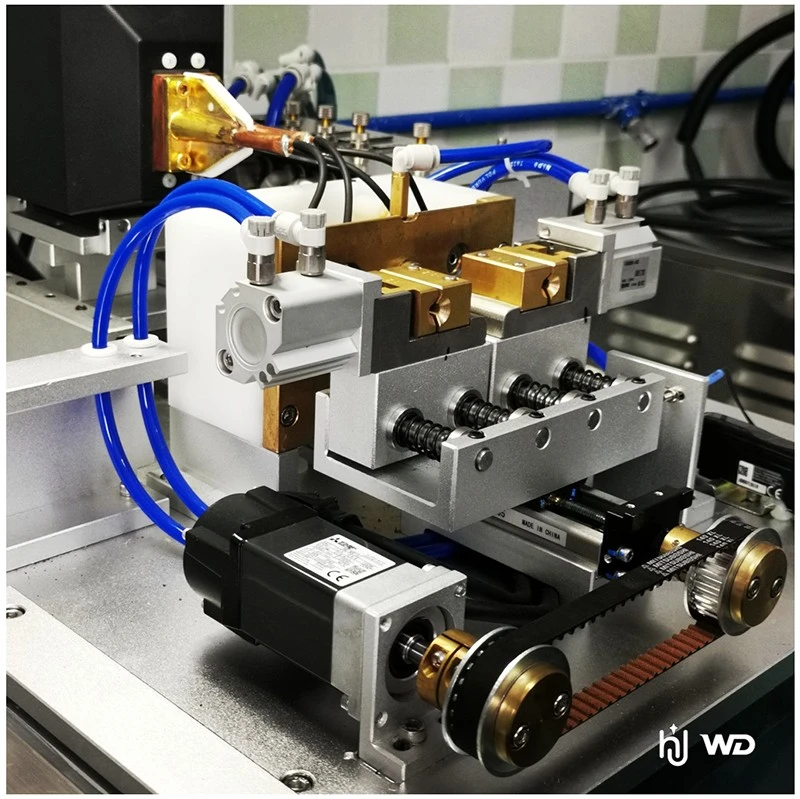

High frequency catheter tipping machine #JVTF23 is designed for trimming various tubes or catheters' head so the tubes or catheters function safely and comfortably. Featured by quality fittings imported by Japan and Europe, and strong Aluminum alloy and stainless steel casings, the tipping machine is able to work efficiently with very low failure rate. Water chilling system is involved when tipping is processed and a small chiller is proposed.

Smooth and precise tip forming of various medical tubes and catheters is performed by the #JVTF23 tube tipping machine, ensuring patient comfort and clinical safety during insertion. High operational stability and minimal breakdown rates are maintained through the incorporation of premium components sourced from Japan and Europe, housed within a robust aluminum alloy and stainless steel structure. Thermal management during the tipping process is handled via an integrated liquid cooling circuit, for which a compact industrial chiller is recommended.

NOTICES: (Click for more details)

Water Chiller Machine is needed to work together with tipping machine and it provides reliable chilled water during the catheter tip trimming process and operates on a standard 220–240 V power supply. Tipping dies are designed subject to specific sizing table and drawing.

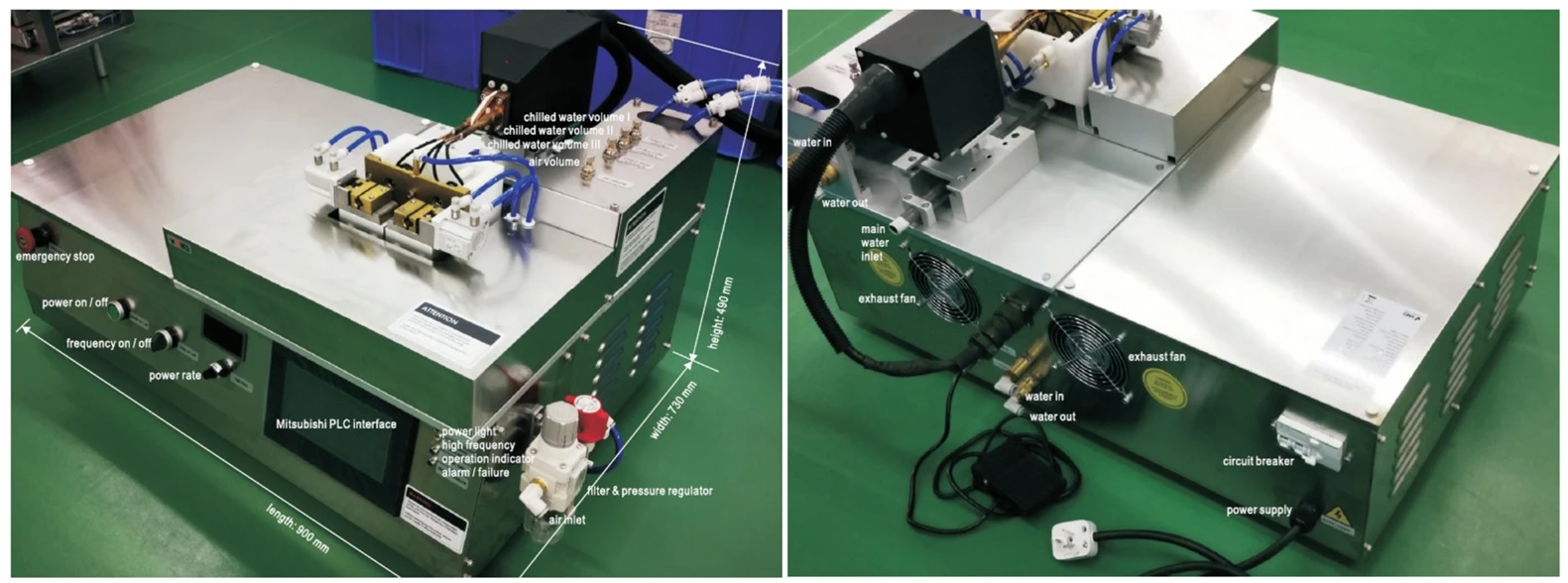

 >> TECHNICAL SPECIFICATIONS:

 1)  Production capacity: 1,500 pcs per hour.

 2)  Power supply: AC 220-240V, 6kw.

 3) Air compressed: 6-8kgs, connection: 10 mm.

 4) Mitsubishi PLC control system.

 5) Net dimension (L/W/H): 900/700/490 mm.

 6) Casing: Aluminum alloy & stainless steel.

 7) Tipping fittings nr. 2.0-10.0 are included.

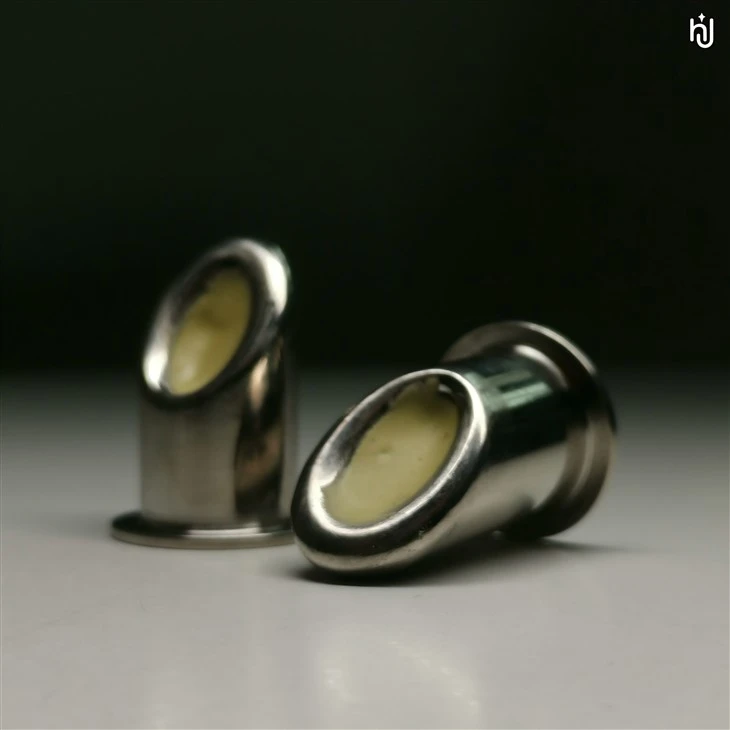

 8) Tipping dies: open tip and closed tip optional.

 9) Warranty: 24 months quality guarantee.

 10) Praticable for endotracheal tubes, tracheostomy tube, suction catheter, feeding tube, nelaton etc.

>> OEM/ODM PRODUCTION:

OEM/ODM service is accepted by HJMED for any our medical catheters and components on the basis of positive innovation and manufacturing practicability over technical, tooling and polymer etc. NDA (Non Disclosure Agreement) is signed/shared between both parties before further confirmation of technical exchange.

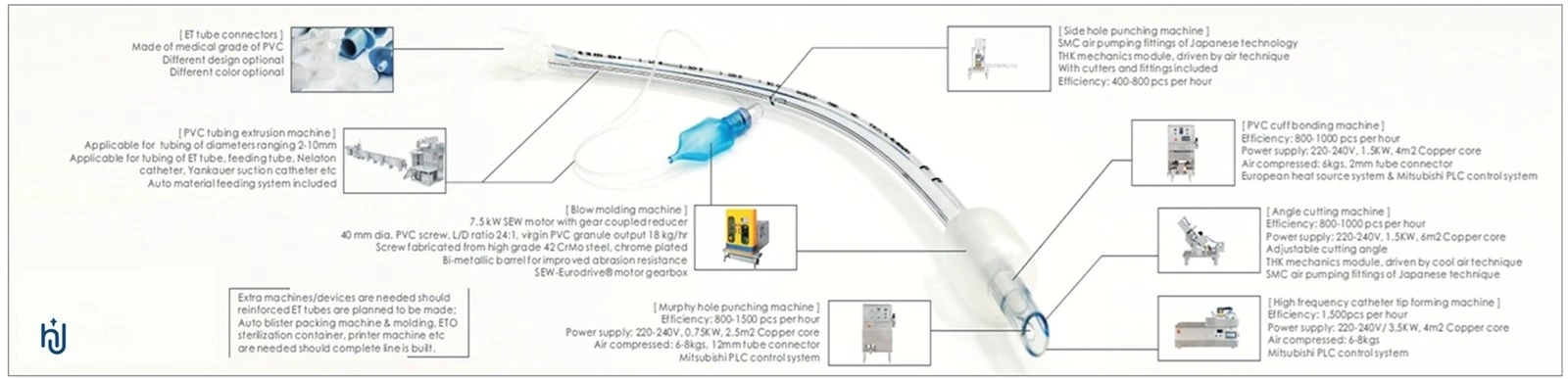

>> DIPPING SYSTEM FOR MANUFACTURING REINFORCED ET TUBING:

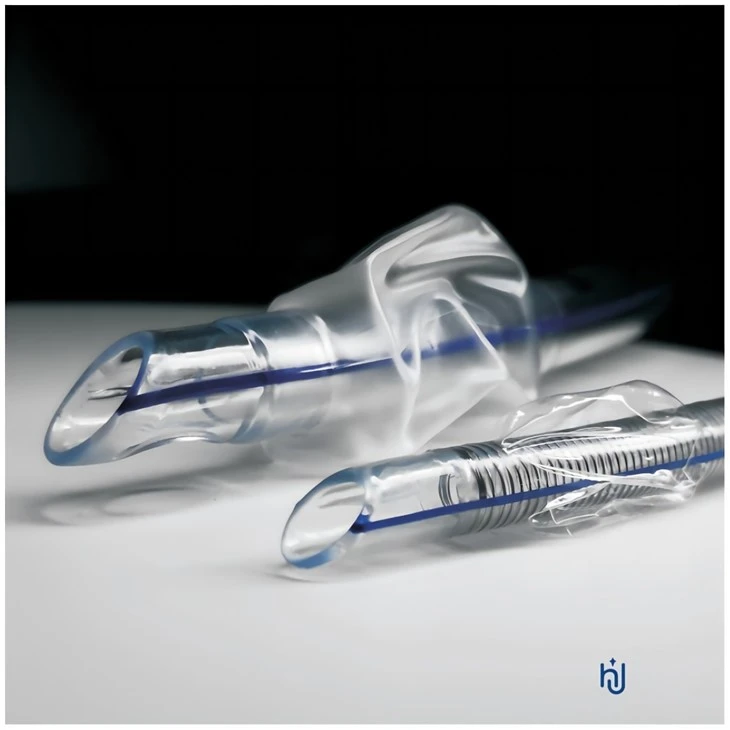

HJMED's reinforced Endotracheal tubes are engineered with a spiral wire embedded in the tracheal tube, offering unrivaled flexibility and effective resistance to kinking. HJMED extrudes PVC tubings in bulk, both plain and reinforced. Post manufacturing processing such as cutting, tipping, hole punching, printing and cuff bonding are optional. Relevant machines and tooling are also available.

Other catheter/cannula processing machines for cutting, cuff bonding, printing, eyelet punching and packaging etc are available; and multi-functional assembly sets such as murphy eye punching & cuff bonding machine set are available; please contact HJMED export team for praticable solution proposal.
