Check Valve Auto-assembly Machine

High-precision quality control, increased manufacturing capacity, and long-term cost reduction are achieved through the implementation of the HJMED automatic assembly machine for non-return check valves. A compact footprint is maintained via an all-in-one modular design, while a minimal failure rate is secured through high-precision process control.

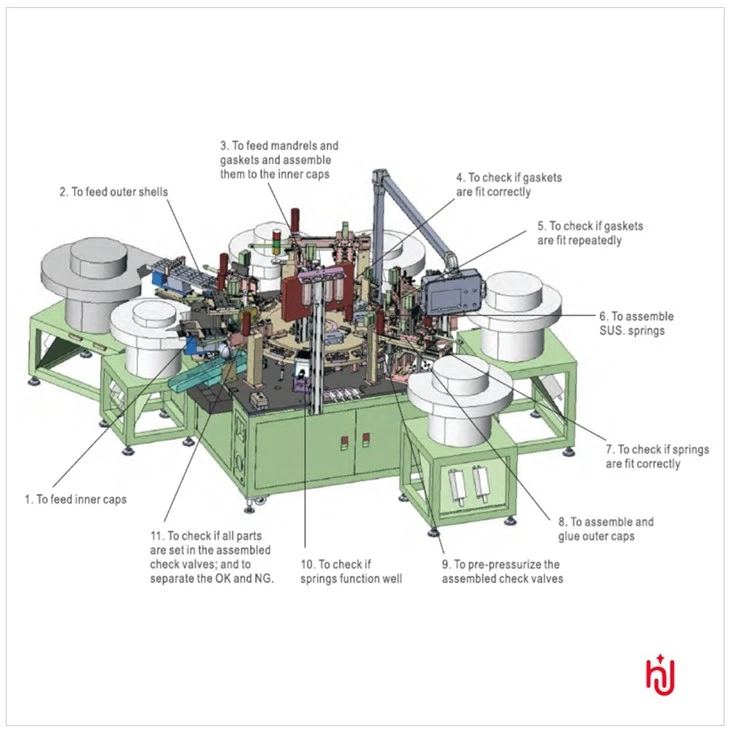

Continuous on-line monitoring and quality verification across every assembly step are performed using an intelligent PLC system, automated gluing apparatus, and integrated testing devices. Consequently, a minimum quality assurance rate of 98% is guaranteed.

Broad compatibility is provided for various disposable check valve designs utilized in medical devices such as Foley catheters, endotracheal tubes, tracheostomy tubes, laryngeal airways, anesthesia masks, and balloon stents.

Capacity each hour: 4,000 pcs

Output each circle: 4 pcs

Efficiency: 98% at least

Power supply: 220V 60Hz ≧15A

Power input: 3kw average and 4kw max. instantaneous

PLC system: Mitsubishi

Pneumatic system: SMC

Controller: touch control screen 10＂

Dimension (L/W/H): 2900/2800/1700 mm

Patient safety and uninterrupted clinical workflows are thereby ensured.

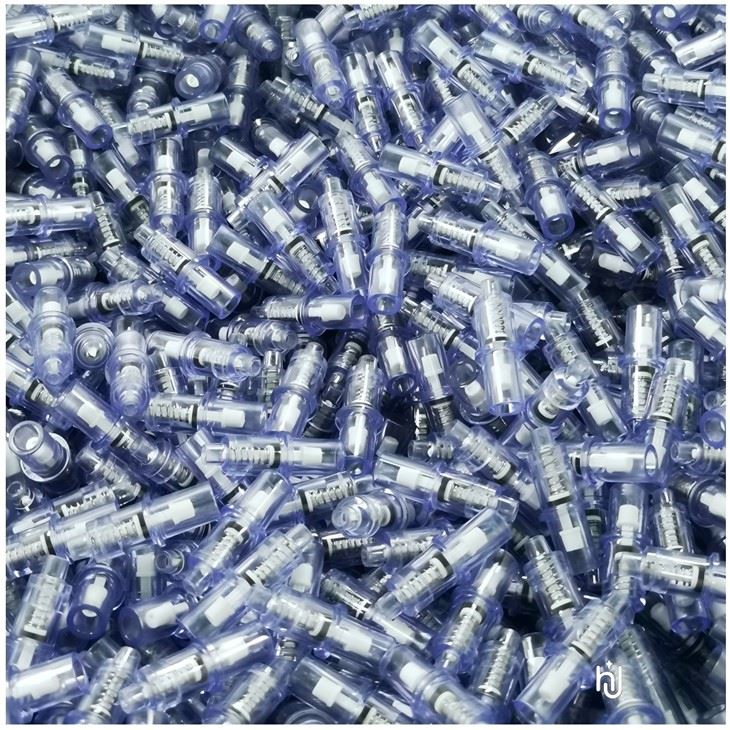

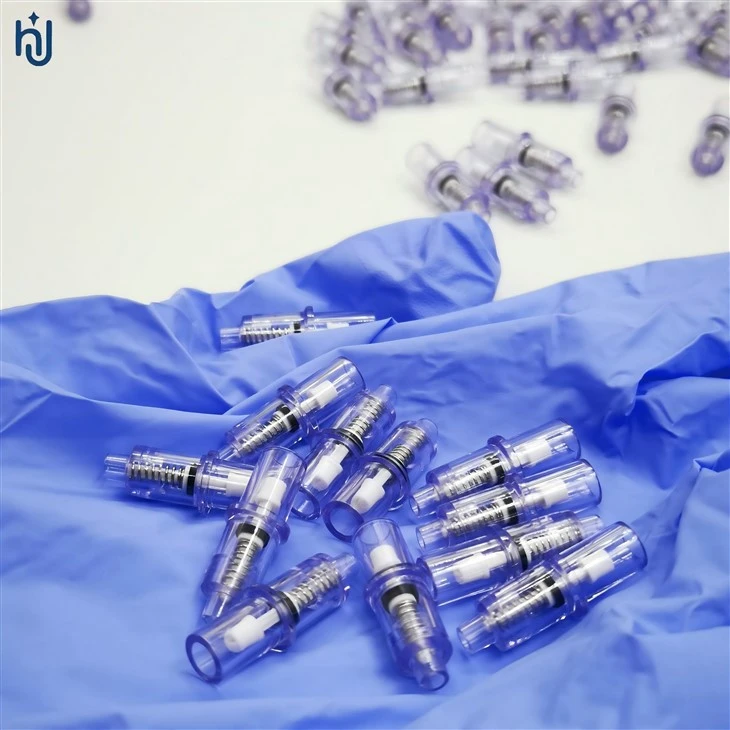

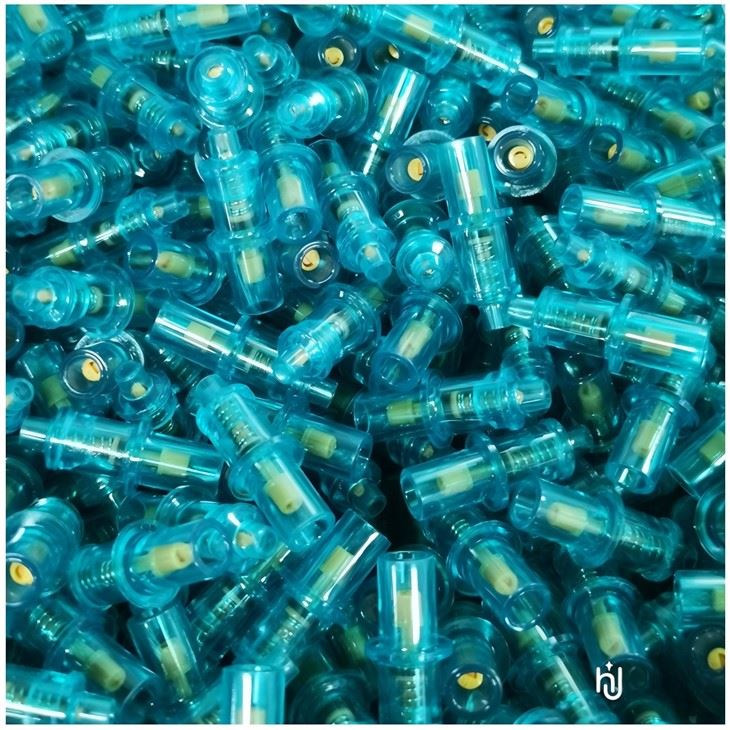

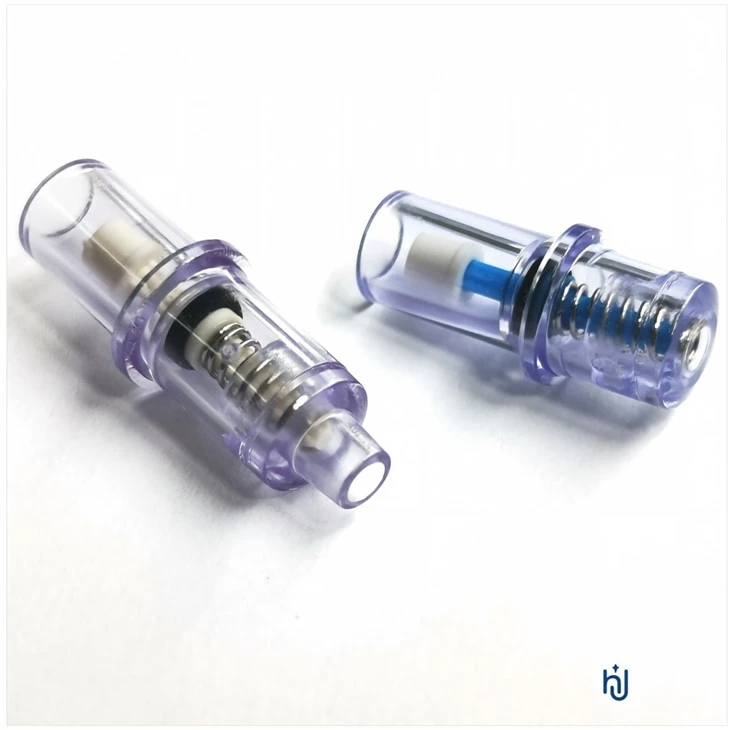

These check valves are designed for integration into disposable medical consumables, including:

(Click for more details)

Endotracheal tubes

Tracheostomy tubes

Endobronchial tubes

Laryngeal mask airways

Silicone and latex Foley catheters

Uterine balloon stents

Cervical ripening balloons
