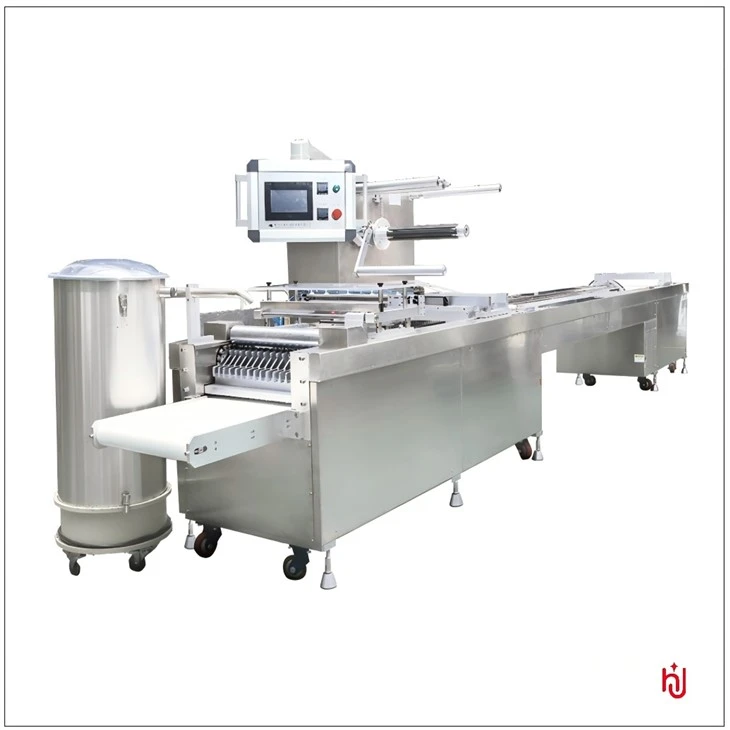

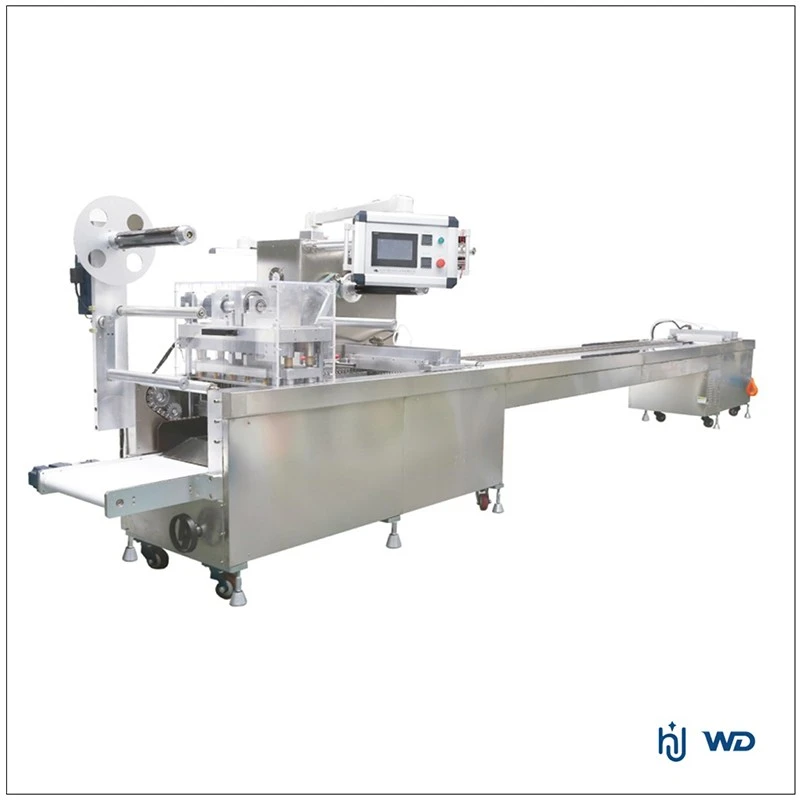

Blister Packing Machine
2). With forming, sealing and cutting die.
3). Flexographic printer and code injet printer are optional.
4). Commissioning film materials provided by JVMED.
5). Min./Max. package width: 20mm / 400mm.
6). Max. package length: 400 mm.
7). Max. package depth for single product: 50 mm.
8). Working speed: 4-5 seconds each cycle.
9). Power supply: 380V/3Ph/50Hz.
10). Max. power input: 10KW.
11). Rated working pressure: 0.6-0.8 Mpa.
12). Cooling water volume: approx. 80L/h (<25℃).

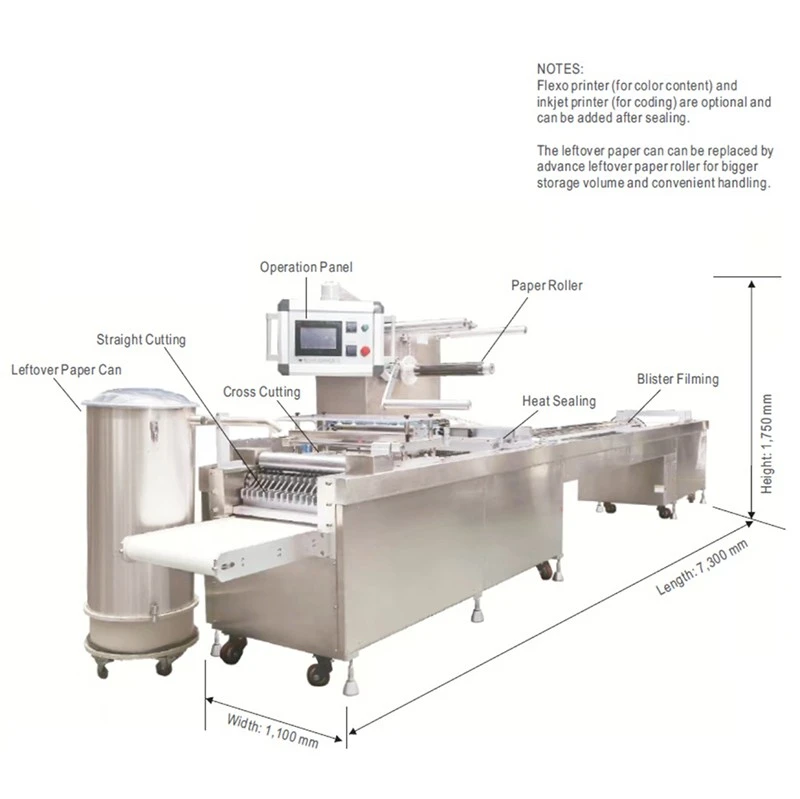

13). Dimension (L/W/H): 7300/1100/1750 mm; net weight: approx. 2000kgs.
14). Casing: stainles steel 304.
15). Warranty: 24 months since the date of loading.
Send Inquiry
Product Introduction
Guangdong Huaju Medical Technology Co., Ltd. is one of the leading manufacturers and suppliers of blister packing machine in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy top-quality blister packing machine made in China here from our factory.

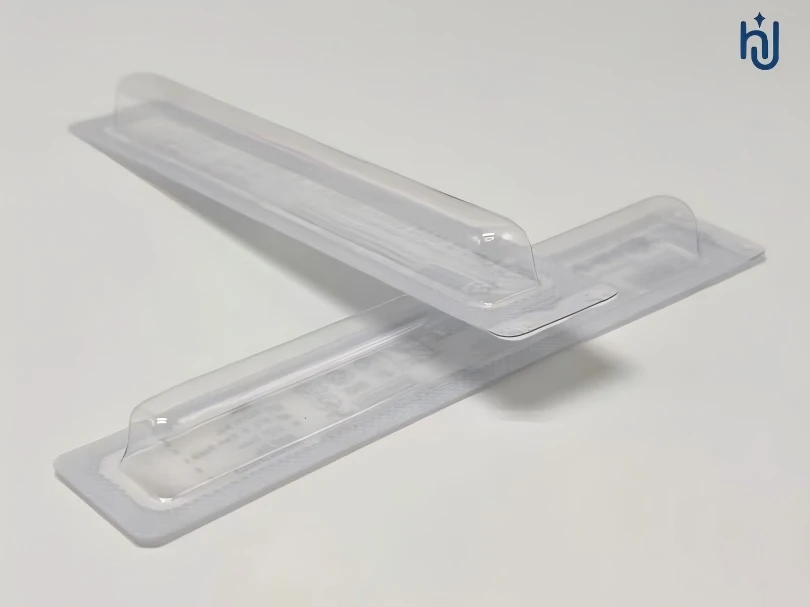

HJMED/JVMED hard blister automatic packing machine is designed with simple purpose of packing medical disposables (infusion set, tracheostomy tube, IV cannula, spinal needle etc) automatically and efficiently. Featuring reliable casing of medical SUS. 304-2B and precise servo control, production capacity.

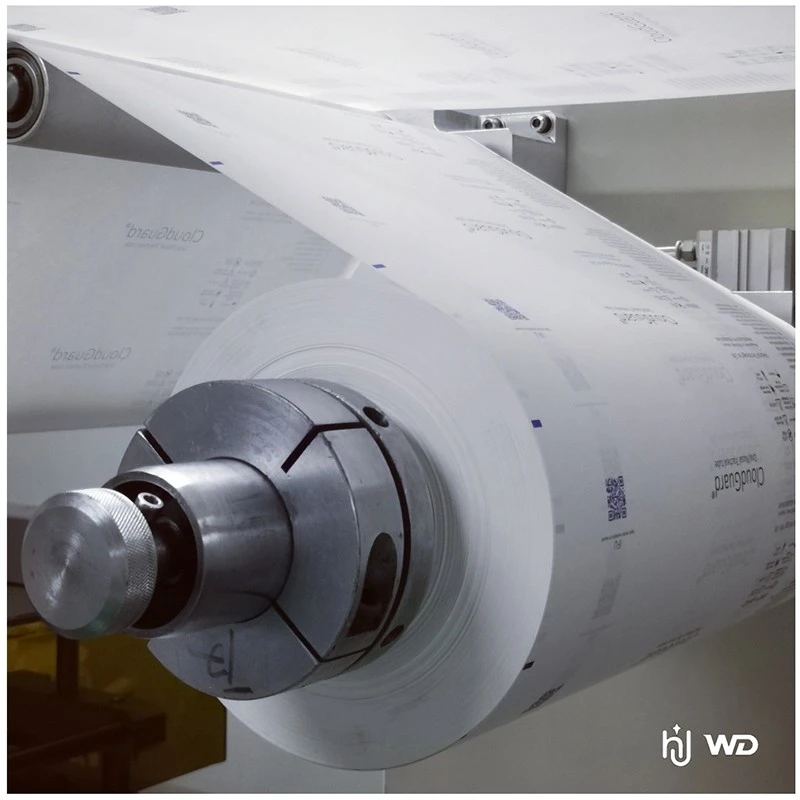

Parts optional: on-line flexo printer, batch code printer, PVC film, blister paper and printing ink.
Make/brand of main components:
a. Operation interface: Mitsubishi of Japan.
b. Programmable controller: Mitsubishi of Japan.
c. Servo motor: Mitsubishi of Japan.
d. Servo drive amplifier: Mitsubishi of Japan.
e. Vacuum pump: BUSCH of Germany.
f. Thermostat: OMRON of Japan.
g. Single-phase solid state relay: CRYDOM of USA.
h. Color code sensor: SUNX of Japan.
i. Rodless cylinder: HOERBIGER of Germany.
j. Solenoid valve and cylinder: SMC of Japan or PNEUMAN of Taiwan.
NOTES:
1) Other machines and tooling for tubes/catheters cutting, notching, printing and tipping etc are optional.
2) To ensure of fast delivery, it is strongly suggested that physical samples and 3D drawings are shared with HJMED's technical team for 100% production transfer.
3) Hard blister machines for various products are optional.

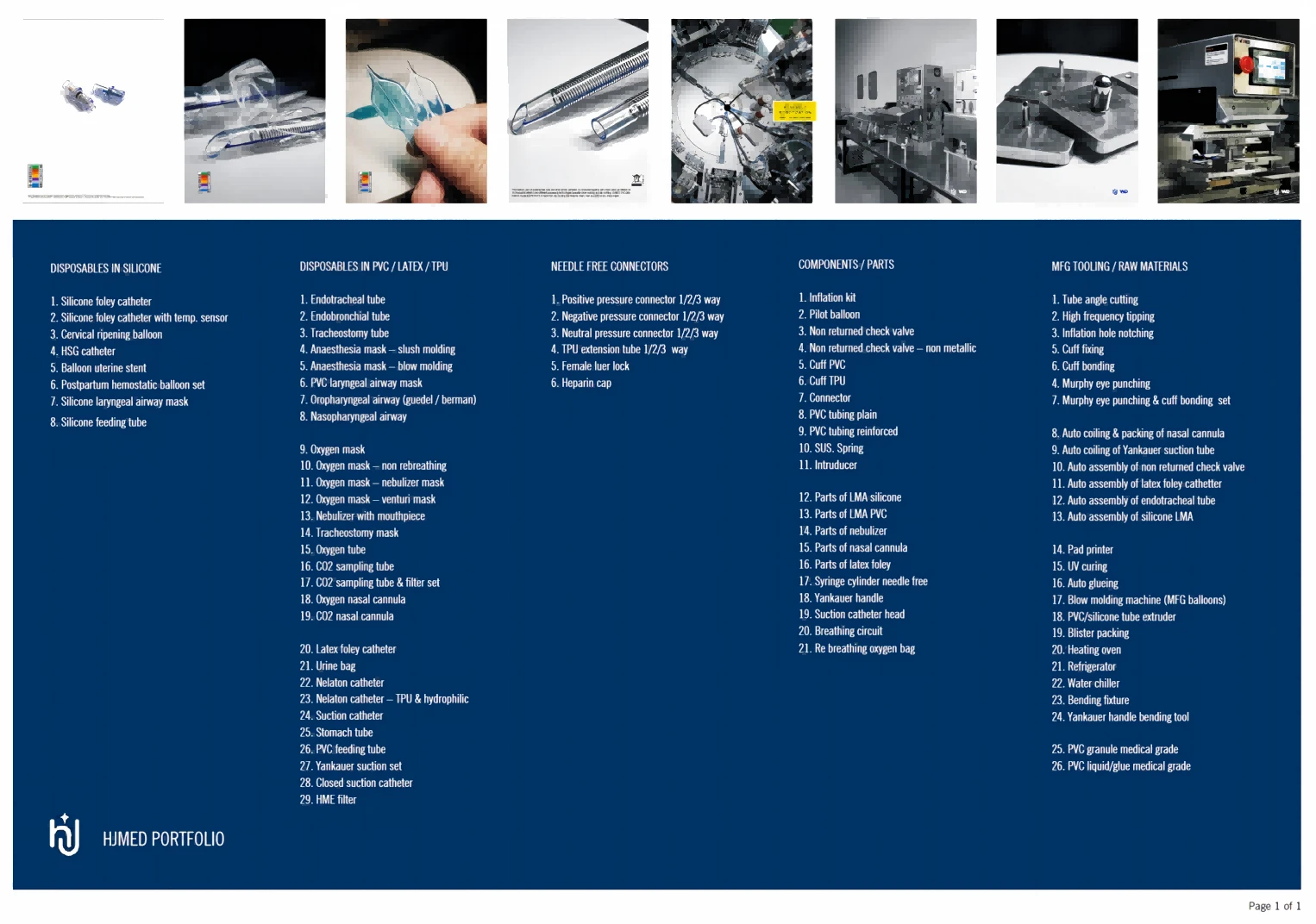

>> HJMED PORTFOLIO:
