PVC Inflation Kit

Guangdong Huaju Medical Technology Co., Ltd. is one of the leading manufacturers and suppliers of pvc inflation kit in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy top-quality pvc inflation kit made in China here from our factory.

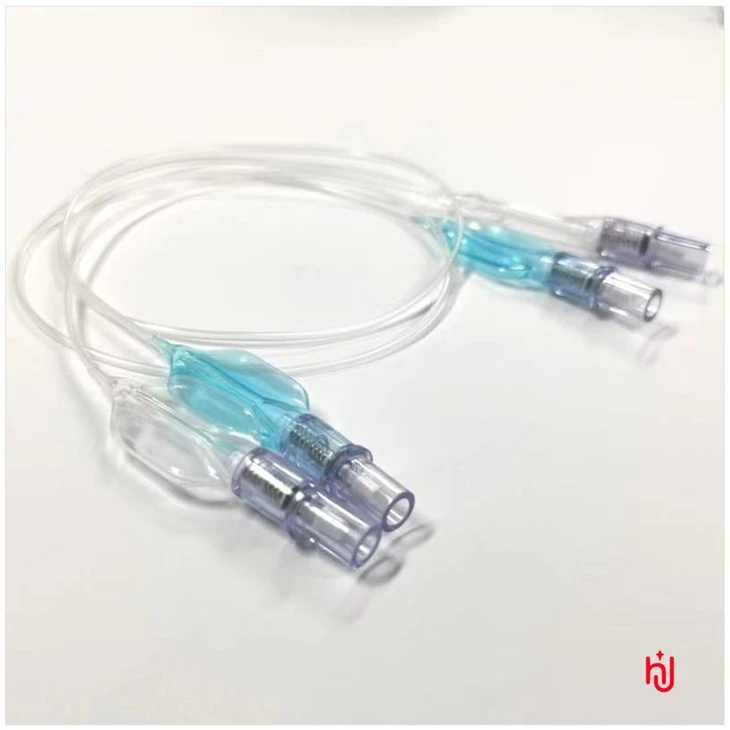

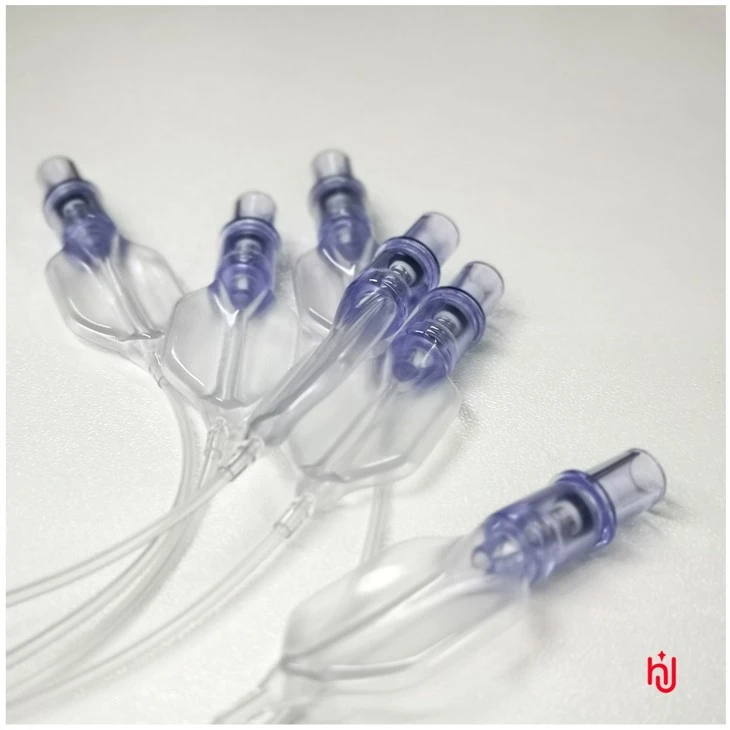

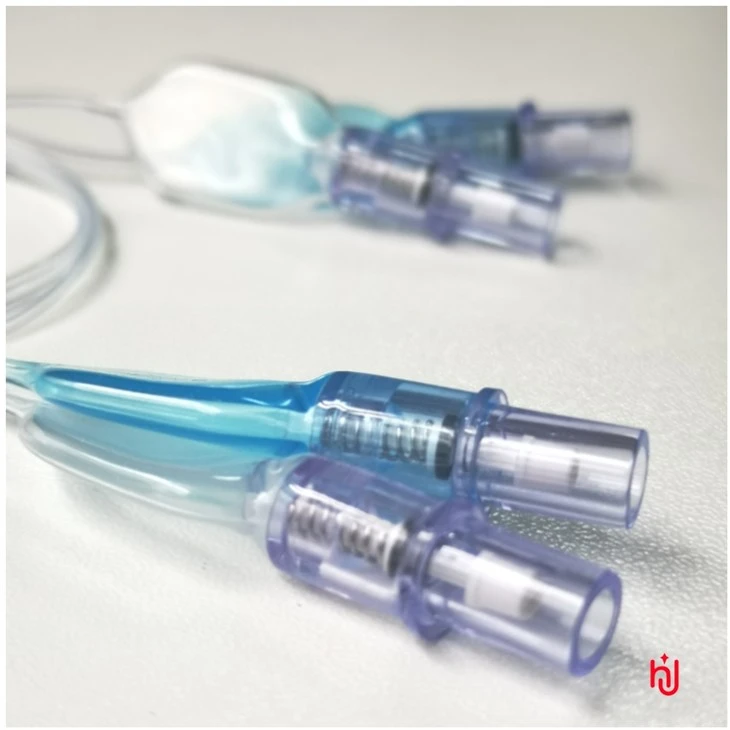

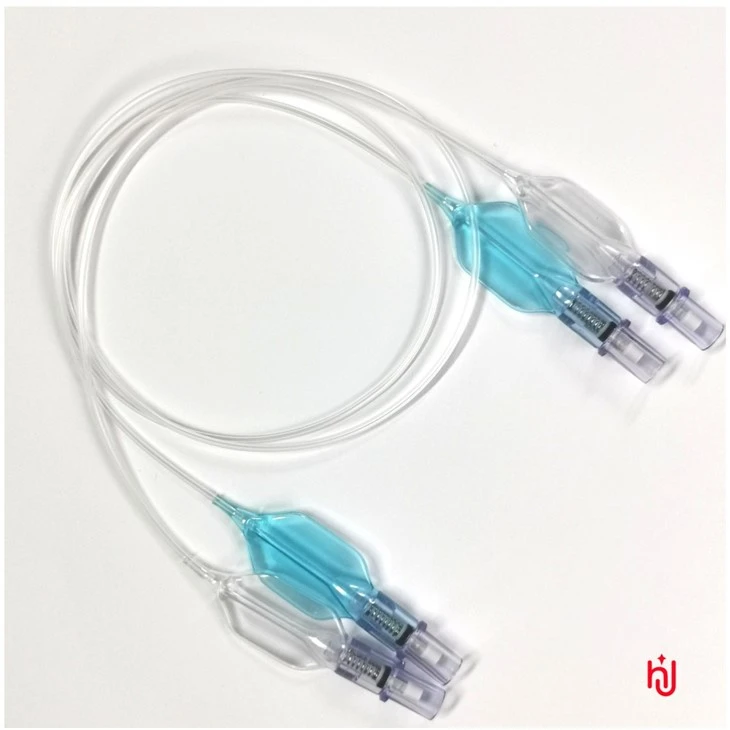

HJMED inflation kit combines non returned check valve, pilot balloon and tubing; each is made by medical grade of PVC granules that developed in house. It is used for endotracheal tube, laryngeal airway mask, endobronchial tube etc.

Component 1: pvc tubing.

Component 2: pvc pilot balloon.

Component 3: non returned check valve.

NOTE: dipped type and blow molded type of pilot balloon are optional. Color green, blue and transparent are optional. OEM/ODM/DFM are accepted subject to specific technical requirements.

>> PACKAGING:

10,000pcs each carton; non sterile.

Quantity is changed when various sizes or products are packaged together.

Plywood packing with timber support is optional for LCL shipments.

​

>> RELEVANT PRODUCT:

HJMED non-returned check valve is widely used in respiratory therapy, anesthesia, drainage and infusion medical systems. It effectively prevents fluid and gas backflow, avoids cross contamination, maintains stable pipeline pressure, safeguards patient breathing safety and ensures smooth medical treatment process. HJMED provides several ranges of check valve, as listed by next page, to meet various applications and technical requirements.

It is mainly used for medical disposables: endotracheal tubes, tracheostomy tube, silicone / latex foley catheter, laryngeal airway mask, uterine balloon tamponade, balloon uterine stent, cervical ripening balloon, laparoscopic trocar, endobroncial etc.

Various portfolio of HJMED check valves are provided to meet different applications and requirements such as: normal size 7.3 & 7.0; cap free, threaded, double ring, flat head, non metallic etc.

Please contact HJMED export team should more details are needed.

>> RELEVANT MACHINE #1:

HJMED PVC blow molding machine #SB-40 is particularly design to manufacture medical grade of PVC pilot balloons and inflation cuffs, of which sizes are ranging from 2.0mm to 10.0mm. It is practicable for both inflation cuffs and pilot balloons.

>> TECHNICAL SPECIFICATIONS:

1). Extruder: 7.5kw SEW motor with gear coupled reducer.

2). 40mm diameter PVC screw, L/D ratio 24:1.

3). Virgin PVC granule output 18kgs/h.

4). Bi-metallic barrel for improved abrasion resistance.

5). SEW-Eurodrive ® motor gearbox.

6). Stainless steel for feed hopper.

7). Clamping force: 3,000kgs.

8). Casing color: red (other colors optional).

NOTES:

1) Other machines and tooling for tubes/catheters cutting, notching, printing and tipping etc are optional.

2) To ensure of efficient and quality to manufacture customers' cuffs and balloons, it is strongly suggested that physical samples and 3D drawings are shared with HJMED's technical team for 100% production transfer.

>> RELEVANT MACHINE #2:

HJMED automatic assmebly machine for disposable non-returned check valves is a smart system that designed for those who plan to achieve precise quality control, higher production capacity with lower cost for long run. The system features all in one module design for saving foot space; and precise control for very low failure rate. Intelligent PLC system, auto glueing and several testing devices make it perfect on-line monitor and quality check over each assembly process, which meets 98% at least guarantee of quality insurance and failure control.

It is applicable for different designs of disposable check valves that used in foley catheter, endotracheal tube, tracheostomy tube, laryngeal airway, anesthesia mask, balloon stent etc.

Note: higher MFG capacity ans system is available and please contact HJMED/WD export team for more details.

>> SPECIFICATIONS:

Capacity each hour: 4,000 pcs

Output each circle: 4 pcs

Efficiency: 98% at least

Power supply: 220V 60Hz >=15A

Power input: 3kw average and 4kw max. instantaneous

PLC system: Mitsubishi

Pneumatic system: SMC

Controller: touch control screen 10"

Dimension (L/W/H): 2900/2800/1700 mm

Revelant video links:

Automatic manufacturing system: https://youtu.be/_BVXR44IU-c

Automatic inspection system: https://youtube.com/shorts/OPcNhbwBRpE?feature=share

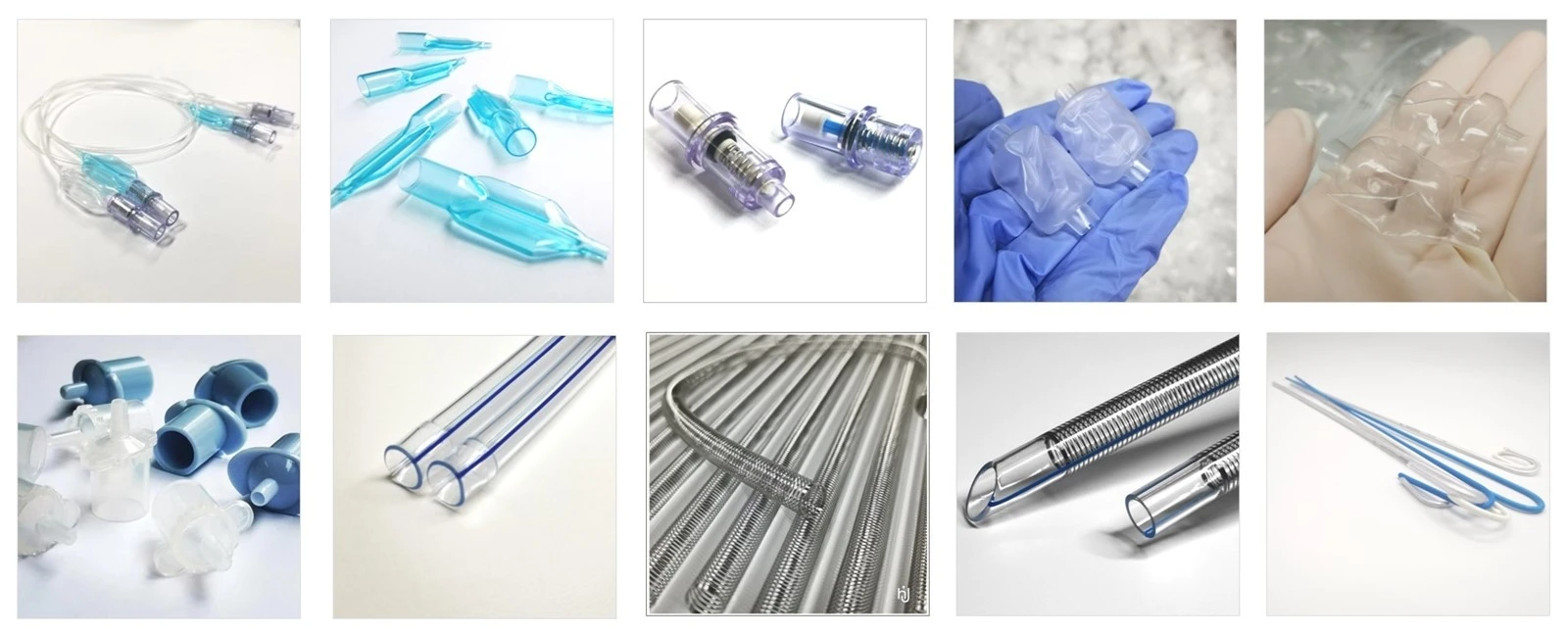

>> RELEVANT COMPONENTS:

THANK YOU for reading and please don't hesitate to let us know should any additional information is needed.

Thanks and best regards,

HJMED export team
